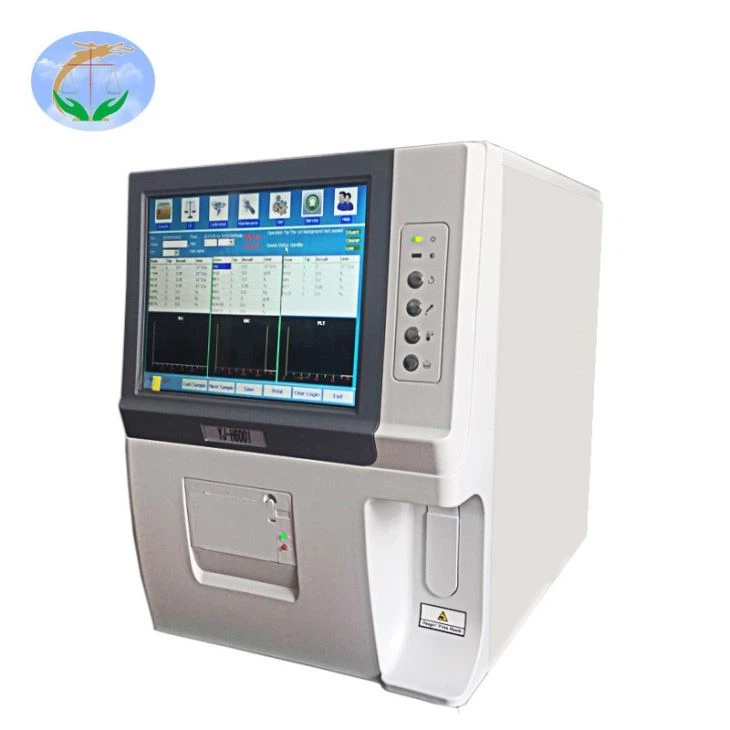

10.4 ″ Loj xim LCD Full-auto Hematology Analyzer
Peb muab Cov Khoom Siv Kho Mob (Biochemistry Analyzer, Hematology Analyzer, Electrolyte Analyzer, Coagulation Analyzer, HbA1c, thiab lwm yam ...), peb tau mob siab rau peb tus kheej kom xa koj cov neeg siv khoom zoo kuaj cov khoom siv nrog cov kev pabcuam ntev.
Peb cia siab tias yuav dhau los ua koj tus khub lag luam mus sij hawm ntev hauv Suav teb.
Taw qhia ntawm hematology Analyzer YJ-H6001:
Ntshav analyzer yog ib qho ntawm cov cuab yeej siv dav tshaj plaws hauv kev kuaj mob hauv tsev kho mob. Ntshav kuaj yog hais txog kev kuaj ntshav niaj hnub. Nws yog qhov ua haujlwm ntxov tshaj plaws ntawm phau ntawv thiab suav hauv lub tshuab tsom. Nws suav nrog cov qe ntshav liab, hemoglobin, suav cov qe ntshav dawb thiab nws cov kev faib tawm, platelet suav thiab lwm yam. Tag nrho muaj 23 yam khoom.
Hematology analyzers yog tshwj xeeb, automated systems uas suav leukocytes, cov qe ntshav liab thiab platelets hauv cov ntshav, thiab tseem txiav txim siab txog qib hemoglobin thiab hematocrit. Hematology thev naus laus zis tau dhau los ntev hauv qhov chaw luv luv ntawm lub sijhawm. Hauv xyoo 1950, kev suav ntshav ua tiav (CBC) tau ua manually los ntawm tus kws tshaj lij nyob rau pem hauv ntej ntawm lub tshuab tsom. Hemoglobin kuj tau ntsuas manually siv txoj kev cyanmethemoglobin, uas qeeb thiab siv sijhawm.
Specification ntawm Hematology Analyzer YJ-H6001:
2 suav hom | tag nrho cov ntshav, pre-dilution ntshav |
Qauv ua ntej dilution | sab hauv diluter, ntxiv 1ml diluent txiav los ntawm rab koob, tsis tas yuav ntxiv diluent manually kom tsis txhob sib txawv. |
Calibration | automated los yog phau ntawv |
QC | QC kev pab cuam, tsim thiab luam tawm cov histogram txiav |
Thaiv tshem tawm | Kev saib xyuas lub sijhawm tiag tiag, siab ignition, tsau, yaug thiab rov qab yaug |
Txoj Cai | Hluav taws xob impedance rau suav thiab SFT txoj kev rau hemoglobin |
Tsis muaj | WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P- LCR, thiab 3 Histograms rau WBC, RBC thiab PLT |
Tshaj tawm | Txog li 60 tus qauv hauv ib teev |
Qauv Volume | Cov ntshav tag nrho: 9ul; Pre-dilution ntshav: 20ul |
Aperture Diameter | WBC: 80μm; RBC: 50μm |
Tswb | Cov lus yuam kev |
Zaub | 10.4 '' loj xim LCD |
Cia | 10; |
Sau ntawv | Built-in thermal tshuab luam ntawv, ntau hom ntawv luam tawm; lwm lub tshuab luam ntawv yeem |
Tswv yim | Nas thiab keyboard, txuas nrog USB chaw nres nkoj |
Interface | USB x3, RS232 x2 |
Cov xwm txheej ua haujlwm | Kub: 15-35 degree; Humidity: Tsawg dua lossis sib npaug li 80%; Atmospheric siab: 70Kpa-106Kpa; Fais fab mov: AC220V ± 22V, 50 ± 1Hz |
Packing Dimension | 325x370x545mm (L * W * H) |
Qhov hnyav | 16Kg (net), 25Kg (tag nrho) |
Nta ntawm hematology Analyzer YJ-H6001:
1.
2.20 parameters + 3histograms;
3.2 suav channel;
4.Txog 60 tus qauv / teev;
5.10.4 ″ loj xim LCD;
6.Ua lub tshuab luam ntawv, USB chaw nres nkoj;
7.Stable, ruaj thiab kev lag luam;
Cov neeg siv-phooj ywg System
10.4 '' loj xim LCD qhia cov zaub mov tseem ceeb thiab tag nrho cov tsis muaj & xim histograms hauv ib qho screen;
Kev qhia ua haujlwm luv luv built-in software, yooj yim rau cov neeg siv saib;
Sib cais module tsim, yooj yim heev mechanical qauv, yooj yim txij nkawm;
Kev kuaj tus kheej rau kho vajtse, tswb rau kev ua yuam kev;
Reagent depletion tswb rau Lyse, Cleanser thiab Diluent, raws li kev xaiv ua haujlwm;
Siab ruaj khov & raug
Siv qhov zoo tshaj plaws binuclear embedded digital circuit system, ua kom muaj peev xwm txheeb xyuas tau zoo thiab ruaj khov
2 suav cov channel ntawm WBC thiab RBC, ua kom cov txiaj ntsig kev xeem muaj tseeb dua thiab tsis muaj kev sib kis
Siv CPLD thev naus laus zis hauv kev ua cov ntaub ntawv, kom tsis txhob muaj kev cuam tshuam ntawm cov teeb liab electromagnetic
Txhim khu kev ua haujlwm System
ARM ntse micro-processing technology
Cov ntaub ntawv tsom xam: ntse pulse formulation technology
Classification: floating landmark technology
Module tsim, ceev ceev
Reagents ntawm hematology Analyzer YJ-H6001:
Peb yuav muab koj lub Start-up reagent teem dawb rau ib chav Hematology analyzer:
(Lyse-500ml,Cleanser-1L,Diluent-5L,Cont.Cleanser-100ml) rau 200 cov qauv kuaj.
Thiab Peb kuj muaj Cov Khoom Muag Reagent: (Lyse-1L, Cleanser-1L, Diluent-20L, Cont.Cleanser-100ml) rau 800 cov qauv kuaj.
Cov reagent koj kuj tuaj yeem siv ABX micro 60 thiab Sysmex reagents.
Package txoj kev:
Vim li cas thiaj xaiv peb lub tuam txhab?
Peb koom tes nrog lub Hoobkas ncaj qha, uas tuaj yeem pab cov neeg siv khoom tau txais lub Hoobkas nqi.
Peb muab ib xyoos pub dawb lub sijhawm lav.
Kev pabcuam OEM.
FAQ
1) Koj lub sijhawm khoom xa tuaj yog dab tsi?
3 hnub ua haujlwm ib ncig yog tias peb muaj cov khoom hauv Tshuag, yog tias tsis nyob hauv Tshuag, 5-7 hnub ua haujlwm nyob ib puag ncig kom tiav cov khoom.
2). Dab tsi yog qhov warranty rau cov khoom?
A: Qhov kev lees paub pub dawb yog 24 lub hlis txij li hnub ua haujlwm tsim nyog.
3) Yuav ua li cas tu cov khoom yog tias nws muaj teeb meem?
Peb muaj cov kws tshaj lij engineers, lawv yuav daws koj qhov teeb meem los ntawm kev sib txuas lus nrog skype lossis xov tooj, lossis ua yeeb yaj kiab rau koj. Yog tias lub tshuab tawg tag thiab tsis tuaj yeem ua haujlwm, xa rov qab rau peb thiab peb yuav xa ib qho tshiab rau koj.
4) Koj cov nqe lus shipping yog dab tsi?
Forermed muaj courier, huab cua, hiav txwv shipping txoj kev.Client tuaj yeem xaiv leej twg nyob ntawm qhov xwm txheej nthuav dav.
Cim npe nrov: Puv-auto Hematology Analyzer
Technical Specifications:
| Txoj Cai | Hluav taws xob impedance rau suav thiab SFT txoj kev rau hemoglobin |
| Tsis muaj | WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P- LCR, thiab 3 Histograms rau WBC, RBC thiab PLT |
| Tshaj tawm | Txog li 60 tus qauv hauv ib teev |
| Qauv Volume | Cov ntshav tag nrho: 9ul; Pre-dilution ntshav: 20ul |
| Aperture Diameter | WBC: 80μm; RBC: 50μm |
| Tswb | Cov lus yuam kev |
| Zaub | 10.4 '' loj xim LCD |
| Cia | 10; |
| Sau ntawv | Built-in thermal tshuab luam ntawv, ntau hom ntawv luam tawm; lwm lub tshuab luam ntawv yeem |
| Tswv yim | Nas thiab keyboard, txuas nrog USB chaw nres nkoj |
| Interface | USB x3, RS232 x2 |
| Cov xwm txheej ua haujlwm | Kub: 15-35ºC; Humidity: Tsawg dua lossis sib npaug li 80%; Atmospheric siab: 70Kpa-106Kpa; Fais fab mov: AC220V ± 22V, 50 ± 1Hz |
| Dimension | 325x370x545mm (L * W * H) |
| Qhov hnyav | 16Kg (net), 25Kg (tag nrho) |
