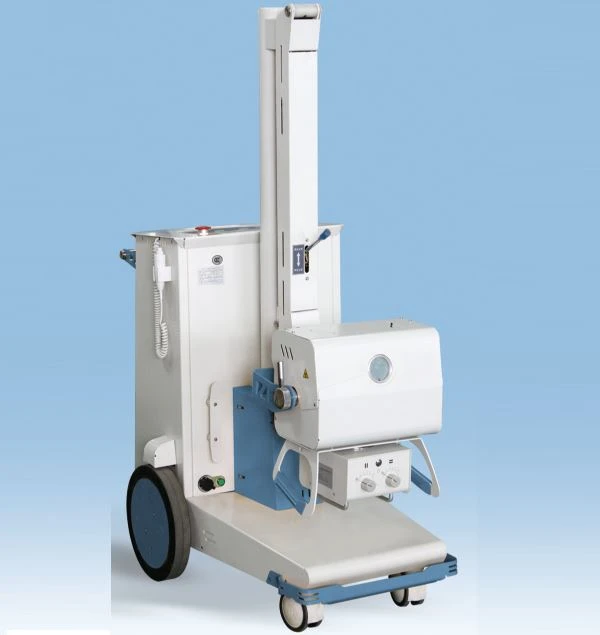

YJ-3210 High Frequency Mobile Radiography System
Daim ntawv thov
Qhov no yog cov khoom siv kho mob X-ray duab kho mob, uas muaj rau pawg ntseeg, xwm txheej ceev, chav ua haujlwm, ICU thiab lwm yam. Cov cuab yeej kuaj mob mobile rau kev yees duab ntawm lub cev locutions xws li lub taub hau, caj npab, kab noj hniav thoracic thiab lub duav plab.
Specifications
Lub cev muaj zog: 3.5KW
Zaus: 40KHz
X-ray Tube: Tsau anode
Ua kom pom tseeb: 0.6/1.5mm
Tube Voltage: 40-110KV (interval 1KV)
Tube tam sim no: 31-70mA
Kev Siv Hluav Taws Xob: 220V ± 10 feem pua 50Hz ± 1Hz sab hauv-ua haujlwm Tsawg dua lossis sib npaug rau 0.5Ω
Txoj Kev Ua Haujlwm: Hlau / Wireless tswj
I.Parameters
X-ray generator:
1. Lub zog: 3.5kw
2. Tube voltage: 40-110kV, txhua 1kV
3. zaus: siab zaus, 40kHz
4. Tube txiaj: 70mA
5. Lub sij hawm raug: 0 04-3.2s; radiography mAs 1-250mAs (kho tau)
8. Wireless exposure tej thaj chaw deb maub los Tube:
1. Dual tsom: 0.6mm/1.5 mm;
2. lub kaum sab xis anode: Tsawg dua lossis sib npaug li 12 degree, anode tshav kub muaj peev xwm: Ntau dua lossis sib npaug ntawm 200KHu;
3. beam splitter rotating range: ± 90 degree, nrog lub teeb qhia;
4. x ray leak: Tsawg dua lossis sib npaug rau 0.2mGy/h
Mobile sawv:
1. tag nrho chav tsev collapsible, X ray tube ntsug motion range: Ntau tshaj los yog sib npaug rau 1200mm;
2. lub kaum sab xis rotating: ± 90 degree;
3. nrog cov neeg kho tshuab nres;
4. Muaj ntau yam rau lub taub hau tig, yooj yim positioned thaum thaij duab;
II Standard Configuration
1.Modular high-frequency thiab high-voltage X-ray generator; High-frequency inverter zog.(3.5KW, 110KV, 70mA, 40KHZ) ib txheej
2.Innovative mobile X-ray photography Lub ntsiab ncej ib txheej
3.Mobile X-ray yees duab tswj qhov system ib txheej
4.Symmetric adjustable beam limiter nrog lub teeb ib teeb 6. 12 "X 15" Duab Intensify, Cassette, Grid ib txheej 7.General spare qhov chaw Ob peb
Ⅲ.Cov yam ntxwv
◇ Cov tsos zoo nkauj, thiab yooj yim txav thiab khiav lag luam; Muaj tag nrho cov yam ntxwv ntawm txhua lub xov tooj ntawm tes X-ray yees duab tshuab.
◇ Lub piller tuaj yeem tig sab xis thiab sab laug ± 90 degree, uas tuaj yeem yooj yim rau kev khiav lag luam hauv pawg ntseeg.
◇ Peb suav nrog qhov tseeb compact high-frequency thiab high-voltage X-ray generator, uas ua kom cov duab zoo dua qub, thaum daim tawv nqaij noj tsawg, los tiv thaiv tus neeg mob zoo dua.
◇ Txais cov thev naus laus zis ntawm kV thiab mAs cov lej kaw lub voj voog, tswj lub sijhawm tiag tiag ntawm microprocessor, uas ua kom qhov tseeb thiab rov ua dua ntawm cov zis tawm.
◇ Qhov ntsuas tuaj yeem hloov kho los ntawm KV thiab mAs ob lub khawm. High brightness, xiav npo LCD zaub. Nrog ntau yam kev ruaj ntseg tiv thaiv muaj nuj nqi xws li dhau-voltage, dhau-tam sim no.
◇ Nrog lub tshuab hluav taws xob xoo hluav taws xob zoo tshaj plaws los txo cov irradiation, uas muaj kev nyab xeeb dua rau ib puag ncig thiab tus neeg teb xov tooj.
