Q: 2. Lub teb chaws twg lossis cheeb tsam twg koj xa mus rau?
A: - Peb cov khoom siv kho mob raug xa tawm thoob ntiaj teb, feem ntau hauv North thiab South America, Europe, Africa thiab Southeast Asia kev lag luam.
Q: 3. Koj txoj kev xa khoom thiab lub sijhawm xa khoom yog dab tsi?
A: - Peb muab ntau txoj kev thauj mus los kom tau raws li qhov xav tau ntawm peb cov neeg siv khoom, suav nrog kev nthuav qhia, huab cua, hiav txwv thiab av. Lub sij hawm xa tuaj txawv nyob ntawm qhov chaw thiab hom kev thauj khoom xaiv.
- Ntes thev naus laus zis: Wireless a -Si Flat Panel Detector - Cov khoom siv hluav taws xob: CsI - Cov duab loj: 350mm x 430mm - Static pixel matrix: 2500 x 3052pixels - Cov pixels zoo: 7.60million - Pixel loj: 140μm - Spatial daws teeb meem: 3.5lp / mm - Tso zis greyscale: 16 ntsis - Lub sijhawm tau txais: Tsawg dua lossis sib npaug li 7s
High zaus Generator
- Nominal tso zis zog: 32kW - Max tso zis zog: 40kW - Zaus: 50kHz / 60kHz ± 1Hz - kV ntau: 40 ~ 150kV, 1kV kauj ruam - mA ntau: 50 -400mA - mAs ntau: 1 ~ 630mAs - Lub zog xav tau: 220V
X-ray tub
- Ua kom pom tseeb: 0.6/1.2mm - Lub zog: 150kV - Anode hom: Rotating - Anode tshav kub muaj peev xwm: 300kHU - Anode lub kaum sab xis: 12 degree

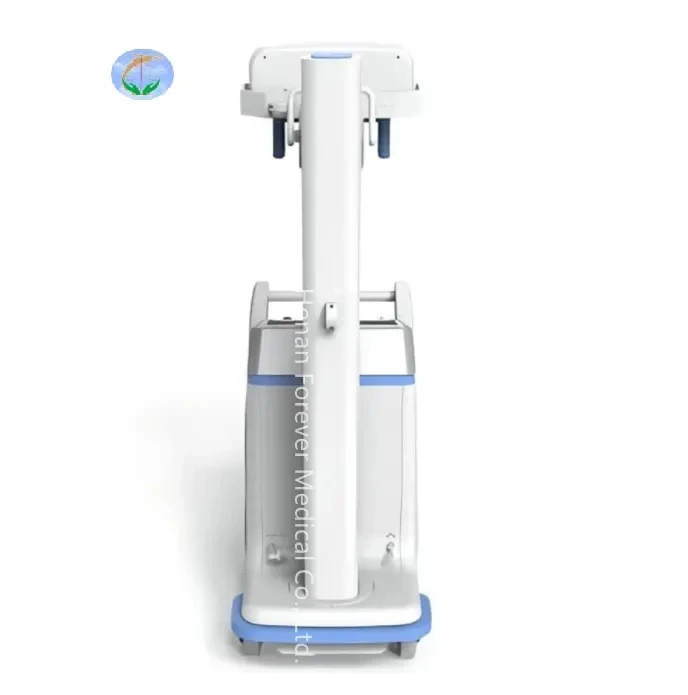

Mobile Stand
- Lub Ncauj Tsiaj Ntau Yam ntawm X-ray Tube Center raws kab: 580 ~ 1800mm - Lub Telescopic Movement Range ntawm X-ray Tube Center raws kab Sab: 720 ~ 1220mm - Sawv ntsug kab kab rov tav kab: ± 315 degree - Collimator Rotation Range raws txoj kab ntsug: ± 90 degree - Mobile Stand Loj: 1230 × 580 × 1820 mm
Collimator
- Tswj: Phau ntawv - Lim: 1.2mm Al - Lub teeb: LED teeb
DX Ray Diagnostic Workstation
- Zaub loj: 19 nti - Pixel matrix: 1280 x 1024 pixels - Kev Tswj Tus Neeg Mob: phau ntawv sau npe, ua haujlwm tsis siv neeg nug. - Duab Tau: tsis siv neeg qhov rais hloov, tsis siv neeg cropping, tsis siv neeg kis. - Duab Ua: kho duab, duab flipping. - Kev soj ntsuam duab: qhov dav qhov rai qhov rais hloov kho, duab flipping, duab tig, duab scaling, thiab kho dua tshiab. - Daim Ntawv Qhia Txog Kev Kho Mob: tsis siv neeg thauj cov ntaub ntawv tus neeg mob - Zaj duab xis Printing: txhawb DICOM3.0 txheem laser lub koob yees duab luam ntawv. - DICOM Hloov: xa cov duab mus rau ib qho PACS thiab chaw ua haujlwm uas ua raws li DICOM 3.0 tus qauv.
Lwm yam nta
Dose tswj hom
- APR (Anatomically Programmed Radiography) hom - Manually teeb tsa hom raug
Kev sib tsoo kuj
- Hluav taws xob pab tsav tsheb thiab muaj cov cuab yeej nres - Txhawb kev hloov mus rau phau ntawv hom yam tsis muaj lub zog - Kev pab txoj kab nqes, qhov siab tshaj plaws txoj kab nqes: Tsawg dua lossis sib npaug li 8 degree
Sib tham sib system
- Lub sij hawm-lapse raug muaj nuj nqi - Chaw taws teeb pom kev pom qhov system thiab intercom system
Lub zog tswj system
- Roj teeb lub zog tso saib ntaus ntawv - Kev tswj hwm ywj pheej rau kev pabcuam fais fab thiab lub tshuab hluav taws xob ntau zaus raug tso tawm - Kev them nyiaj ceev hom - Lub zog ntse tswj qhov system: computer pw tsaug zog, lub tshuab hluav taws xob ntau zaus pw tsaug zog - Kev txawj ntse lub zog hloov pauv muaj nuj nqi: txhawb kev raug thaum them nyiaj
