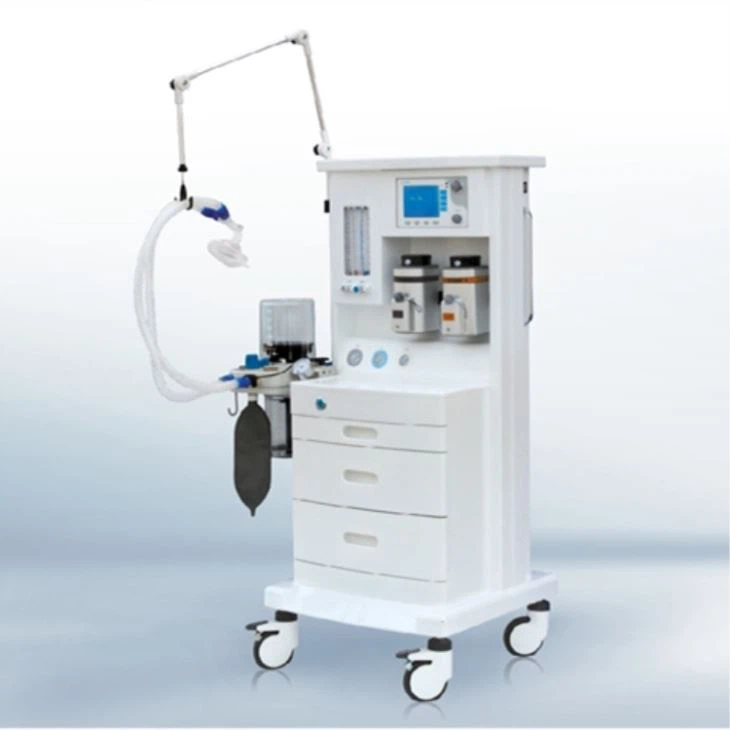

Ib tug vaporizer MRI Multifunctional Anesthesia tshuab
Lub tshuab tshuaj loog (UK Lus Askiv) lossis lub tshuab tshuaj loog (US Askiv) lossis Boyle lub tshuab siv nws tus kheej los ntawm kws kho mob anaesthesiologists thiab kws saib xyuas neeg mob anaesthetists. Cov kws pabcuam tshuaj loog kuj tseem siv cov tshuab tshuaj loog raws li kev saib xyuas ncaj qha ntawm tus kws kho mob tshuaj loog. Cov tshuab siv tshuaj loog yog siv los txhawb kev tswj hwm ntawm kev siv tshuaj loog. Hom tshuaj loog feem ntau siv nyob rau hauv lub ntiaj teb tsim yog lub tshuab tshuaj loog tas mus li, uas yog tsim los muab cov khoom siv tshuaj loog kom raug thiab txuas ntxiv ntawm kev kho mob gases (xws li oxygen thiab nitrous oxide), sib xyaw nrog qhov tseeb ntawm cov tshuaj loog. vapor (xws li isoflurane), thiab xa qhov no rau tus neeg mob ntawm lub siab nyab xeeb thiab ntws. Cov tshuab niaj hnub no suav nrog lub tshuab ua pa, lub tshuab nqus tsev, thiab cov cuab yeej saib xyuas neeg mob.
Taw qhia:
Qhov no high-precision vaporizer yog tsim los nrog ib tug ruaj khov concentration tso zis, tsis siv neeg them nyiaj rau siab, kub thiab txaus tus nqi. Thiab nws muaj rau xaiv ib hom roj av los ntawm Halothane, Enflurane, Isoflurane, thiab Sevoflurane, kom ntseeg tau tias kev ua haujlwm tshuaj loog ua tiav.
Txhim khu kev qha pneumatic kis tau tus mob.
Kev lag luam thiab kev teeb tsa kom zoo ntawm cov thev naus laus zis, xaiv tau raws li tus neeg siv khoom xav tau.
Modularized tsim thiab kho dua tshiab. Kev kho dua tshiab yog muaj raws li tus neeg siv khoom xav tau.
Technical parameters:
Tshuab tshuaj loog | |
Qauv | YJ-A804 |
Ib feem ntawm lub tshuab tshuaj loog | |
Lub cev loj | High-strength engineering yas khib, lub teeb, zoo nkauj thiab corrosion kuj |
Scope ntawm daim ntawv thov | cov neeg laus, menyuam yaus (4 xyoos saum toj no) |
Gas qhov chaw | O2, N2O: 0.28 ~ 0.6MPa |
Flow Meter | O2,N2O: {{0}} 05-1.0L/min 1. 1-10L/min |
O2, N2O txuas thiab N2O Stopper | When using nitrous oxide, oxygen concentration>25%. Thaum cov pa oxygen<0.2MPa, the flow of nitrous oxide would be cut off. |
Vaporizer | Ob, high-precision evaporator |
Ib feem ntawm Ventilator | |
Zaub hom | 5.7" |
hom | IPV, SIPPV, SIMV, Phau ntawv |
muaj nuj nqi | PEB, SIGH, IRV |
TV | 50-1500ml |
Tus nqi | 2-99 bpm ib |
SIMV nqi | 2 ~ 20 bpm |
I:E | 2:1~1:8 |
Inspiratory trigger siab |
-10~20cmH2O |
PEB | 2 ~ 20cmH2O |
Kev txwv siab | 10 ~ 60cmH2O |
SIGH | 1.5 npaug ntawm lub sijhawm ua pa / 100bpm |
Hwj chim | AC 220V 50Hz (UPS, Cia roj teeb) |
Parameters rau kev saib xyuas qhov cua | B1, B2, B4: tidal ntim, feeb qhov cua ntim, IPPV tus nqi, SIMV tus nqi, tag nrho cov pa ua pa, I / E, siab kawg ntawm txoj hlab pa, siab - lub sij hawm waveform, ntws - lub sij hawm waveform, PEEP, inspiratory trigger siab B3, B5: tidal ntim, feeb qhov cua ntim, IPPV tus nqi, SIMV tus nqi, tag nrho cov pa pa, I / E, ncov siab ntawm txoj hlab cua, siab - lub sij hawm waveform, ntws tus nqi - lub sij hawm waveform, PEEP, inspiratory trigger siab, nqus pa tidal ntim , inspiratory platform, nruab nrab siab, autonomous inspiratory tus nqi, oxygen concentration, roj teeb muaj peev xwm, flow-volume voj, siab-volume voj |
Mechanical Arms | YOG |
End-tidal CO2 saib xyuas | Xaiv tau |
