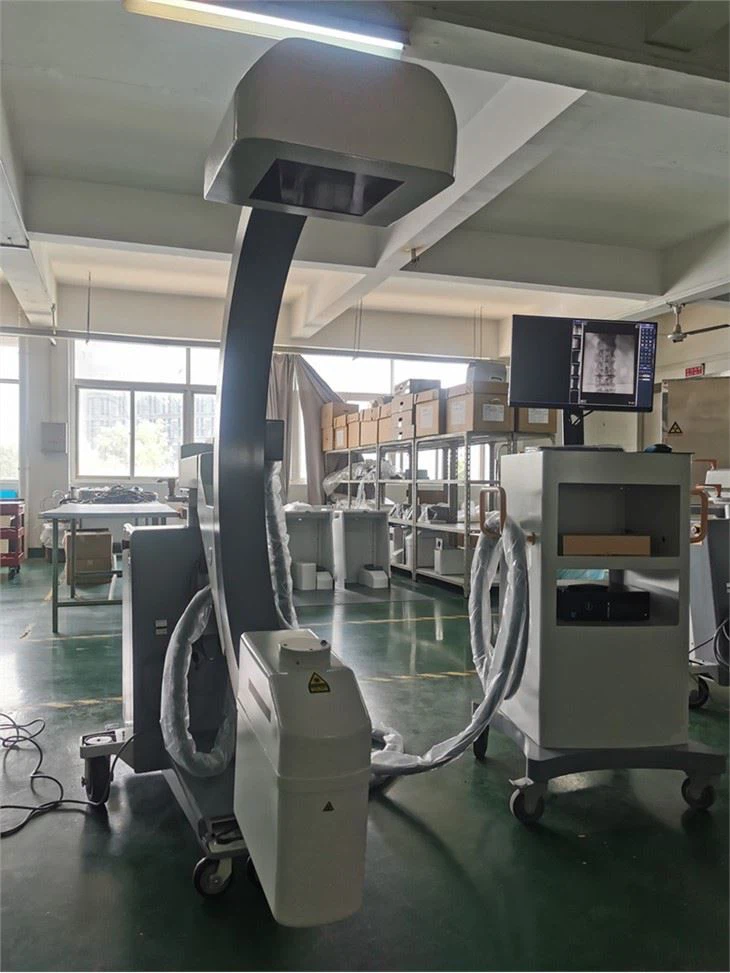

YJ-DG3360A Txawb FPD C-arm X-Ray Khoom(nrog laser txoj hauj lwm)
Daim ntawv thov: Siv dav hauv chav ua haujlwm, X-ray department, chav xwm ceev, kev cuam tshuam thiab peripheral angiography.Kev phais dav dav, urology, phais hauv siab, kev raug mob, phais txha caj qaum, phais plab, orthopedics, pob txha txo thiabkho, endoscopy thiab phais.Intervertebral disc angiography thiab angioplasty.
Cov yam ntxwv tseem ceeb:
1) Nrog HF & HV generator, inverter, thiab siab zoo duab intensifier, lub x ray generator tuaj yeem ua haujlwm ruaj khov.txo qhov kev puas tsuaj rau cov kws kho mob los ntawm hluav taws xob.
2) 10.4 "LCD tus phooj ywg interface tswj lub rooj tsavxwm: kev ua haujlwm yooj yim thiab tuaj yeem tig mus rau 180 degree (L90 degree, R90 degree) pivnrog lub rooj tsavxwm zoo tib yam, peb cov zaub LCD tsis yooj yim rau oxidized Dhau li, qhov teeb meem yuav tshwm sim hauvSuav, uas yuav txhim kho qhov ua tau zoo ntawm kev kuaj mob.
3) Pulse thiab boost fluoroscope muab txhua yam loj ntawm cov neeg mob nrog kev kuaj pom tseeb.
4) Nrog lub kauj kauj, nws tuaj yeem kho cov kev taw qhia sai sai thaum txav mus.muaj.
5) Nruab nrog tshwj xeeb thaiv kab log, nws tuaj yeem zam kev sib tsoo thaum lub tshuab txav.
6) Qhov chaw dawb loj hauv arc: qhov chaw tuaj yeem ncav cuag 800mm, uas yooj yim rau kev ua haujlwm.
7) Original Korean linear slide rail tuaj yeem ua rau lub tshuab txav tau yooj yim.
8) Siv nrog Omron Relay, lub suab nrov tuaj yeem txo thiab lub neej ntawm cov cuab yeej tuaj yeem nce ntxiv.
Main specification | |
HF lub tshuab hluav taws xob | 120 KV, 1.5 kW ib,40 kHz |
Fluoroscopy hom | Fluoroscopy mode40~120kv0.5~5mA (KV phau ntawv thiab tsis siv neeg); Pulsd fluoroscopy 40~ 120kv 0,5-5mA Boost fluoroscopy 40 ~ 120kV 5 ~ 10mA; Kev yees duab 40 ~ 120kV 1 ~ 250mAs |
X ray cev | Dual-focusTiganode:{{0}}.3mm/0.6mm LtalisIMD Technology
|
Ntes |
Phaj: ib leeg A-Si TFT ntxiv rau photodiode phaj Tus Qauv Zauv: Csl Tag nrho cov duab xa tawm dav: 1024 Tag nrho cov duab kis qhov siab:1024 Pixel suab: 154 Quantization qhov tob: 16 Fais fab mov input: 24±10 feem pua Kev sib txuas lus / duab hloov: Ethernet cable |
Lub ntsiab feature ntawm lub detector yog: Cold start feature Offset stability validity mus txog 10 feeb Fluoroscopy thiab RAD duab muaj peev xwm Passive txias ntaus ntawv Kev kub ceev duab hloov tsheb siv Ethernet txuas | |
Duab system | 5 Degree rov ua duaTxo suab nrov Ncej khov Ntau txhiab daim duab khaws cia Duab sib tham thiab tig Screen zaub nrog cov duab sib piv Stxhawb nqa"ib nias" print, luam daim ntawv qhia Equip nrog Dicom 3.0 chaw nres nkoj network (yeem) Support Dicom 3.0cov ntaub ntawv txheem export muaj nuj nqi
|
Mechanical motion specifications （hluav taws xob xaiv tau）
| Verticaltravel: 0-400mm(hluav taws xob)Kab rov tav: 0 ~ 200mm(xaiv hluav taws xob xaiv tau) Kev sib hloov ntawm kab rov tav axis: ± 180 degree(xaiv hluav taws xob xaiv tau) Slipping raws lub voj arcrail (hluav taws xob xaiv tau) |
C-arm dimension | Qhov deb ntawm qhov chaw focal mus rau lub tshuab hluav taws xob duab (SID): 1000mm Qhov tob hauv caj npab Ntau dua los yog sib npaug rau 650mm Mobile sawv: 1800mm * 800mm * 1850mm Duab qhov system: 750mm * 530mm * 1680mm |
Txheem configuration | Ntesib: 1set x-ray generator: 1set duab processor 24'' LCD siab txhais zaub 1 teeb Mobile sawv: 1set Printer:1 ua |
